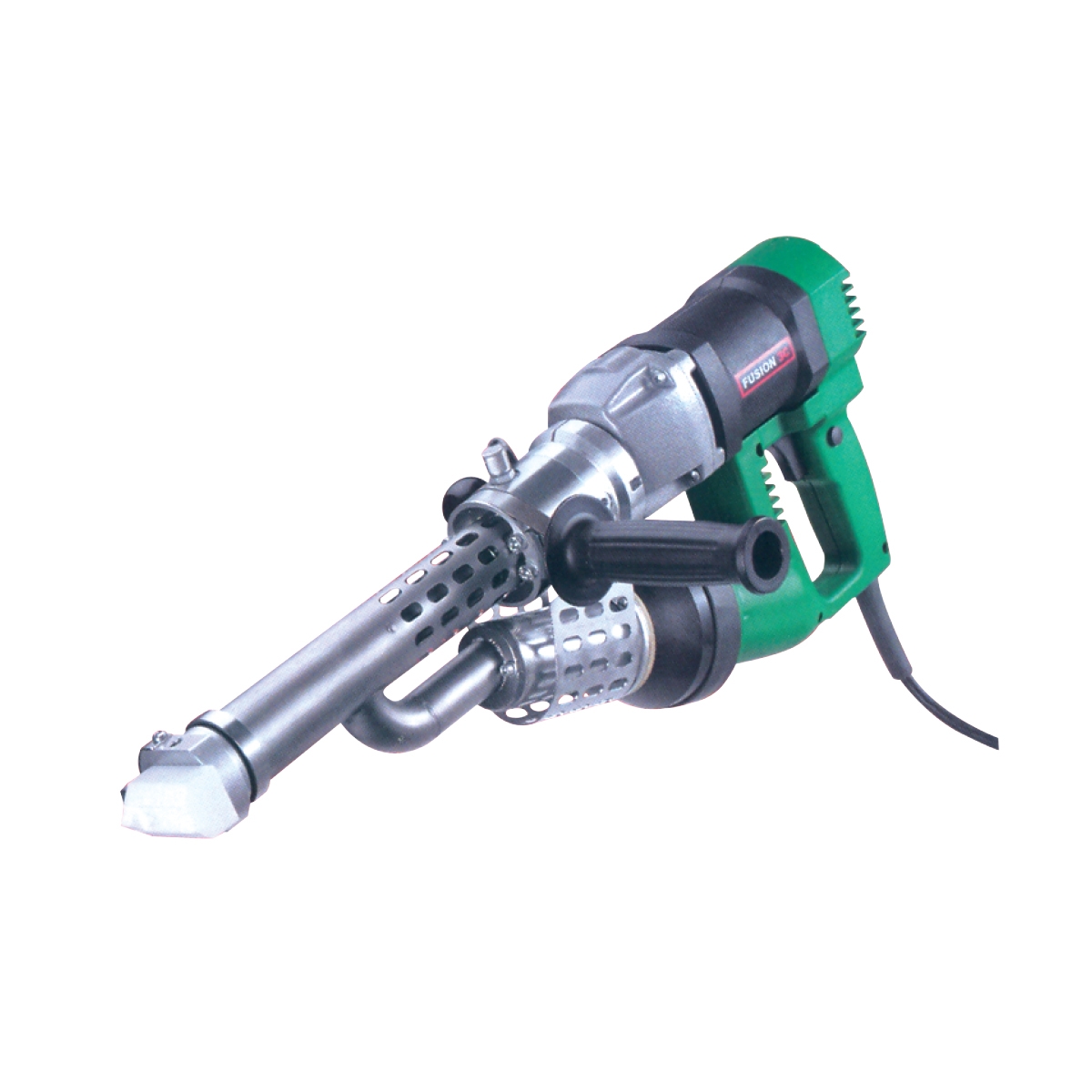

The somewhat shorter FUSION 3C provides an astounding output volume of up to 3.6 kilograms (8 lbs.) per hour.

• High welding performance
• Compact and handy
• Motor start-up protection prevents cold start
• Dual-sided, twist-free wire intake
• 360° rotatable welding shoe



Technical Data

FUSION 3C - 230 V / 2800 W / Welding rod ∅ 3 – 4 mm / EU-plug++

Article No. *123.866*

Attribute	Unit	Value
Welding rod	mm ∅	3 – 4
Output PE ∅ 3	kg / h	2.0 – 2.5
Output PE ∅ 4	kg / h	2.7 – 3.6
Output PP ∅ 3	kg / h	1.8 – 2.3
Output PP ∅ 4	kg / h	2.5 – 3.4
Voltage	V~	230
Power	W	3500
Material		PE / PP
Max. air outlet temperature	°C	350
Max. Plastification temperature	°C	320
Output PE ∅ 5	kg / h	2.7 – 3.6
Output PP ∅ 5	kg / h	2.5 – 3.4
Size (L × W × H)	mm	588 × 98 × 225
Weight	kg	6.9
Conformity mark
Protection class II
