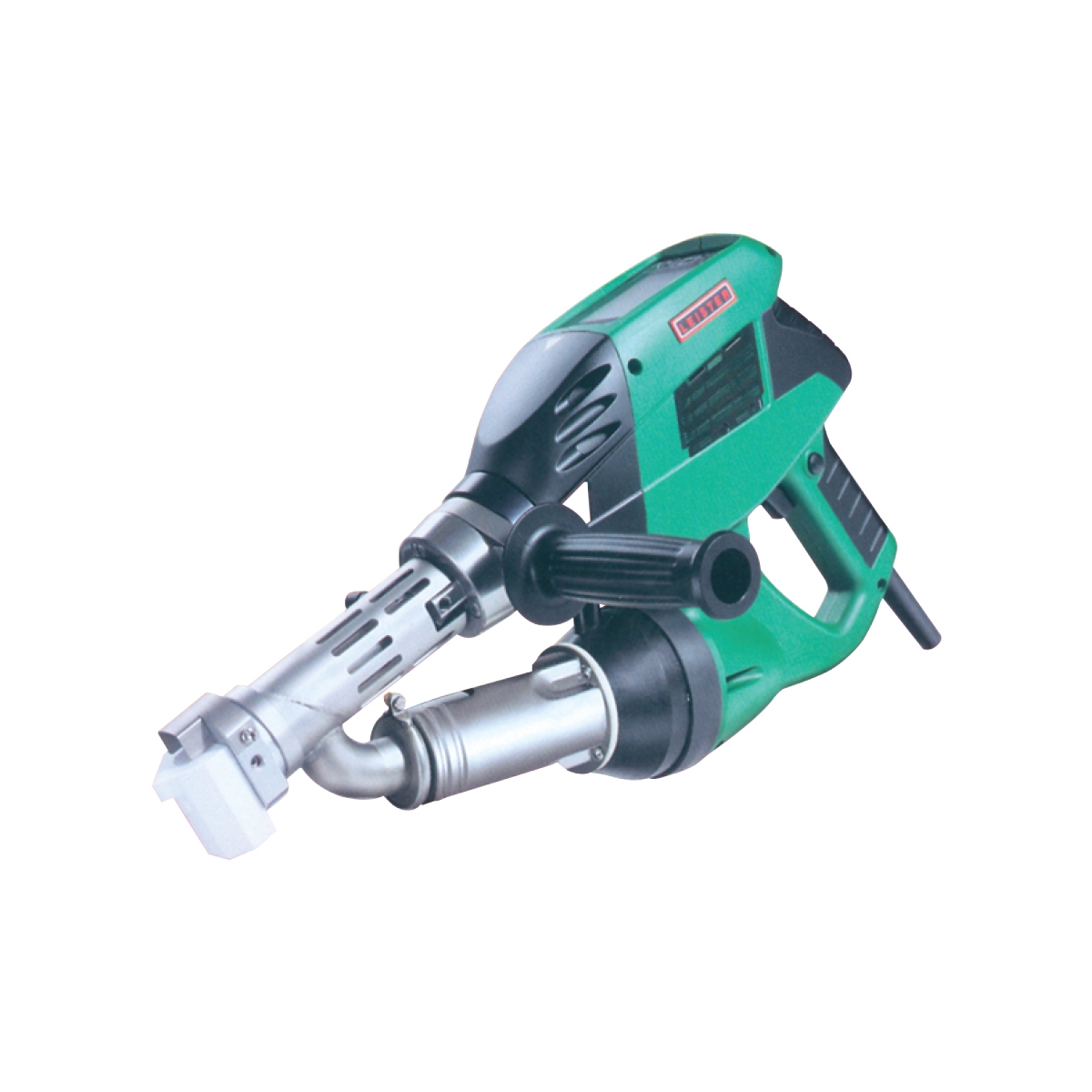

The WELDPLAST S2 is a compact, ergonomically designed workhorse. The handy-sized extrusion welder puts out 2 kg (4.4 lbs.) per hour of extrudate and can even weld TPO materials without difficulty.

• Maintenance-free blower
• Perfect weld seam quality
• Multifunctional display
• Ergonomic and handy
• Successfully operated worldwide



Technical Data

WELDPLAST S2 - 230 V / 3000 W / EU-plug++

Article No. *127.215*

Attribute	Unit	Value
Voltage	V~	230
Power	W	3000
Max. air outlet temperature	°C	350
Max. Plastification temperature	°C	260
Material		PE / PP
Welding rod	mm ∅	3 – 4
Output ∅ 3	kg / h	PE: 0.6 – 1.3 / PP: 0.5 – 1.2
Output ∅ 4	kg / h	PE: 1.0 – 2.3 / PP: 0.9 – 2.0
Size (L × W × H)	mm	450 × 98 × 260
Weight	kg	5.8
Conformity mark
Protection class I
